Video Introduction

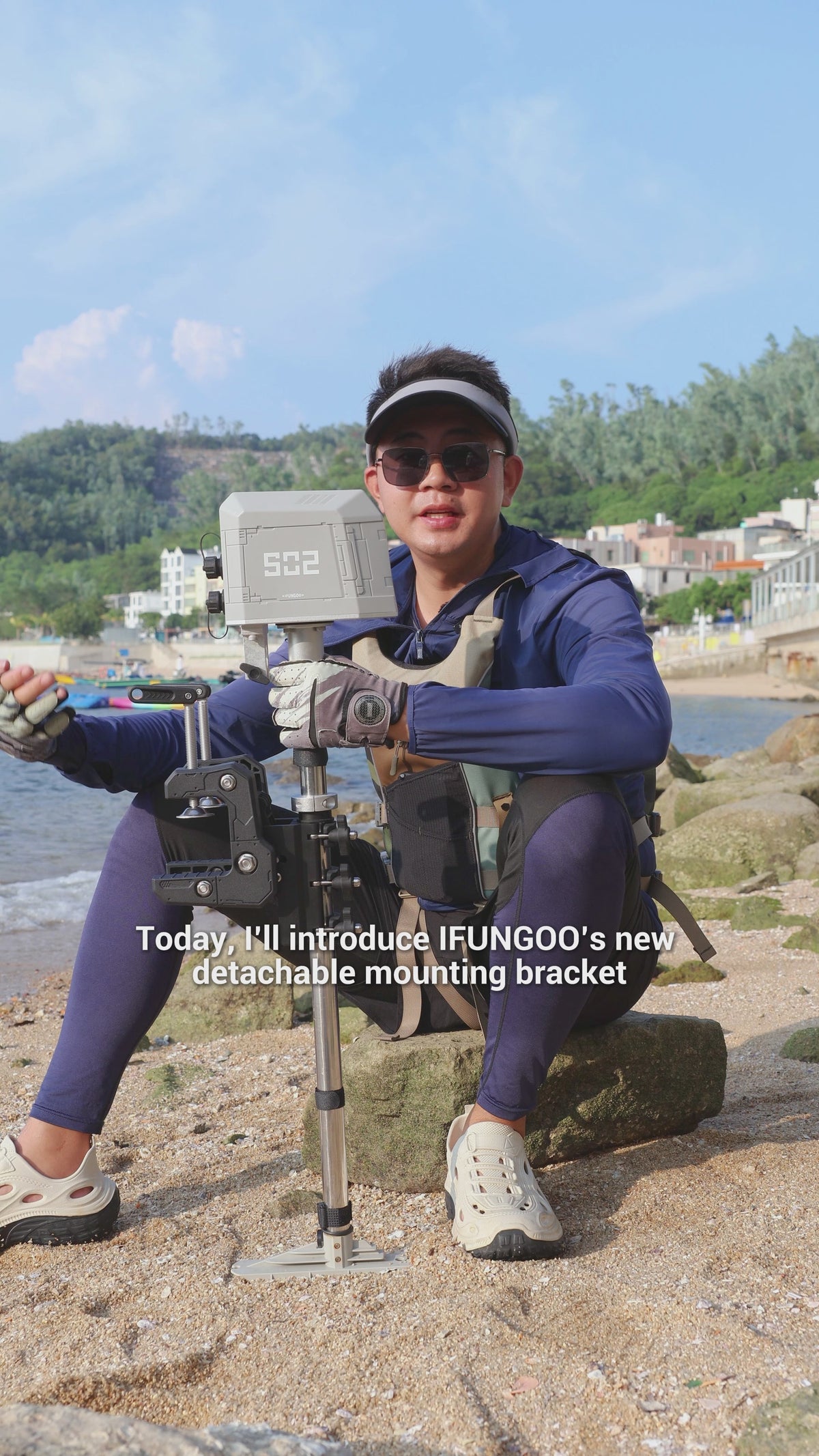

Introducing the IFUNGOO new detachable aluminum alloy mounting bracket for electric thrusters. Compared with the previous version, the new bracket is simpler and easier to use. This video walks you through the full assembly, thrust-depth adjustment, 80-degree tilt setup, and replacing the old bracket on the S01 manual steering mount.
What's New
- Quick-detach design — simply loosen the three screws and the section detaches easily.
- Adjustable thrust depth — push the section down and release the latch to position the thruster deeper in the water.
- 80-degree tilt adjustment — raise the thruster in salt water to avoid hitting the bottom, or lift it out when debris gets tangled around it.
- S01/S02 compatible — the new bracket is also compatible with the S01 manual steering mount.
Assembly Steps
Loosen the three screws — the section is very easy to detach.
Push the section down, then release the latch. You can now adjust the thrust depth.
Position the thruster deeper in the water, slightly further down.
Once everything is aligned, make sure it sits at an 80-degree angle, then fix the suction pad into position.
With the screw back in place, turn it clockwise to tighten. Make sure the screws are securely tightened.
Next, fix the depth stop — the thruster is now set to a deeper position.
Replacing the Old Bracket (S01 / S02)
Use a screwdriver to remove the four screws of the existing bracket.
Once the screws are removed, take the old bracket assembly apart.
Fit the new bracket in place, align it carefully, and make sure it is vertical.
Tighten the screws one by one until secure.
The new mounting bracket is now installed on the S01 manual steering mount.
